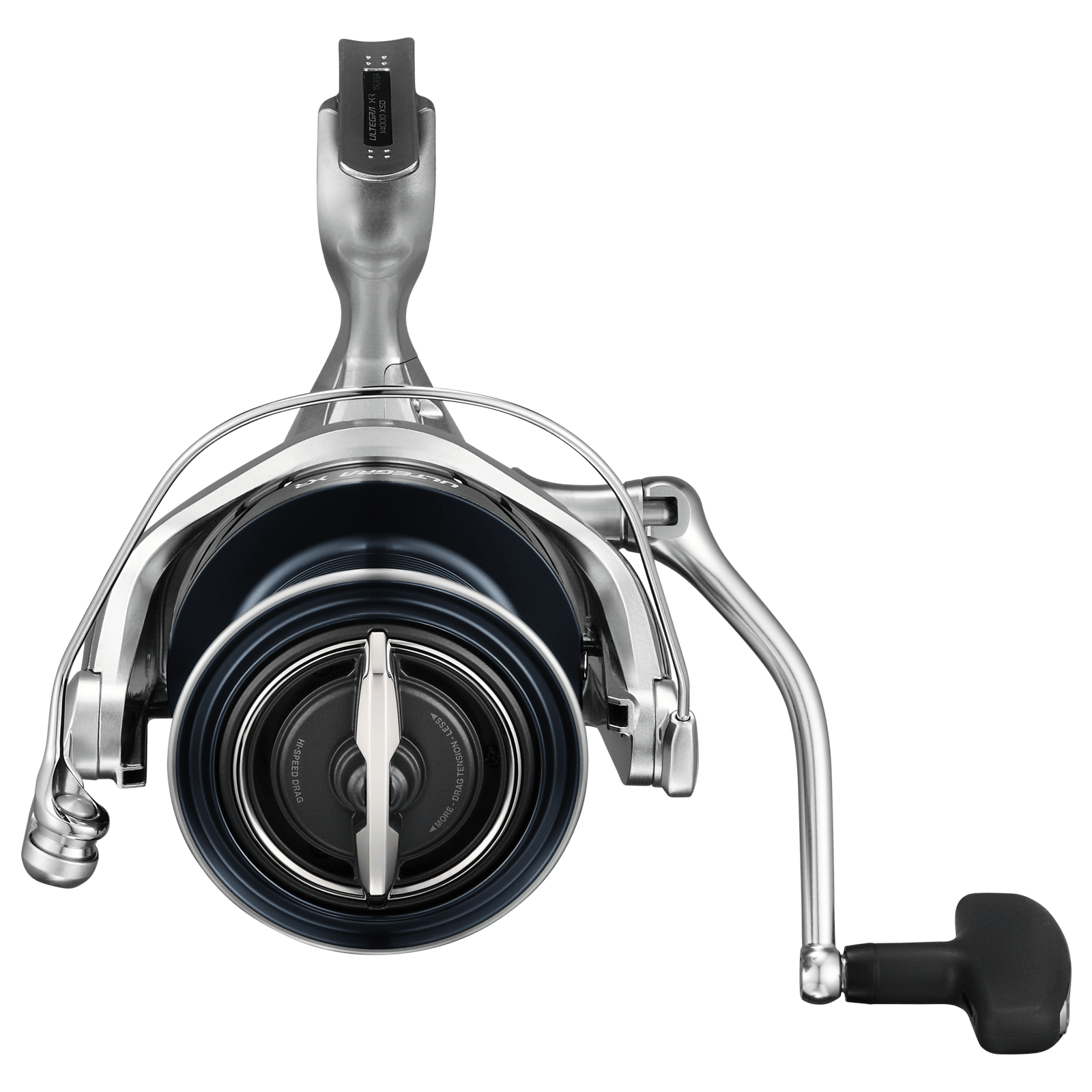

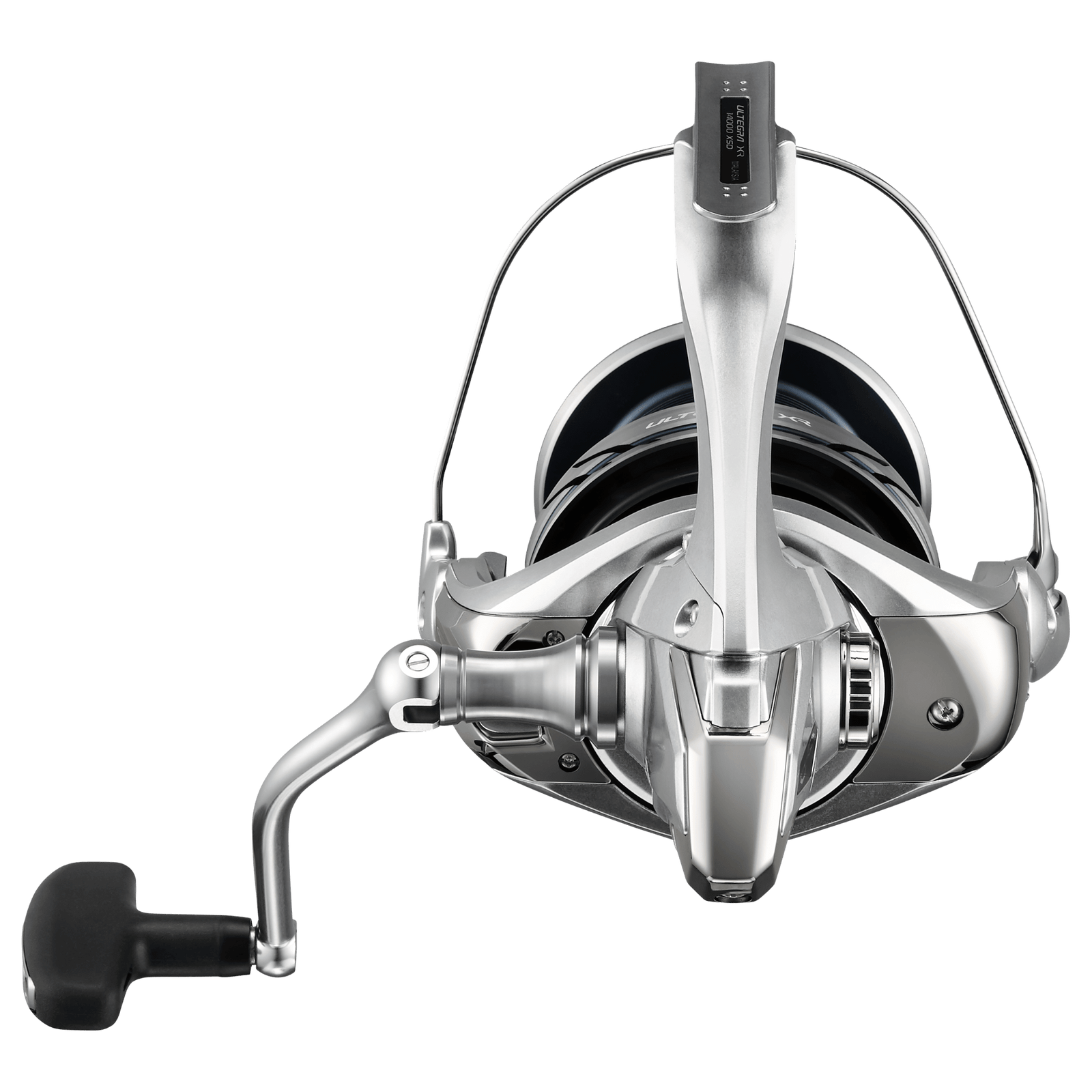

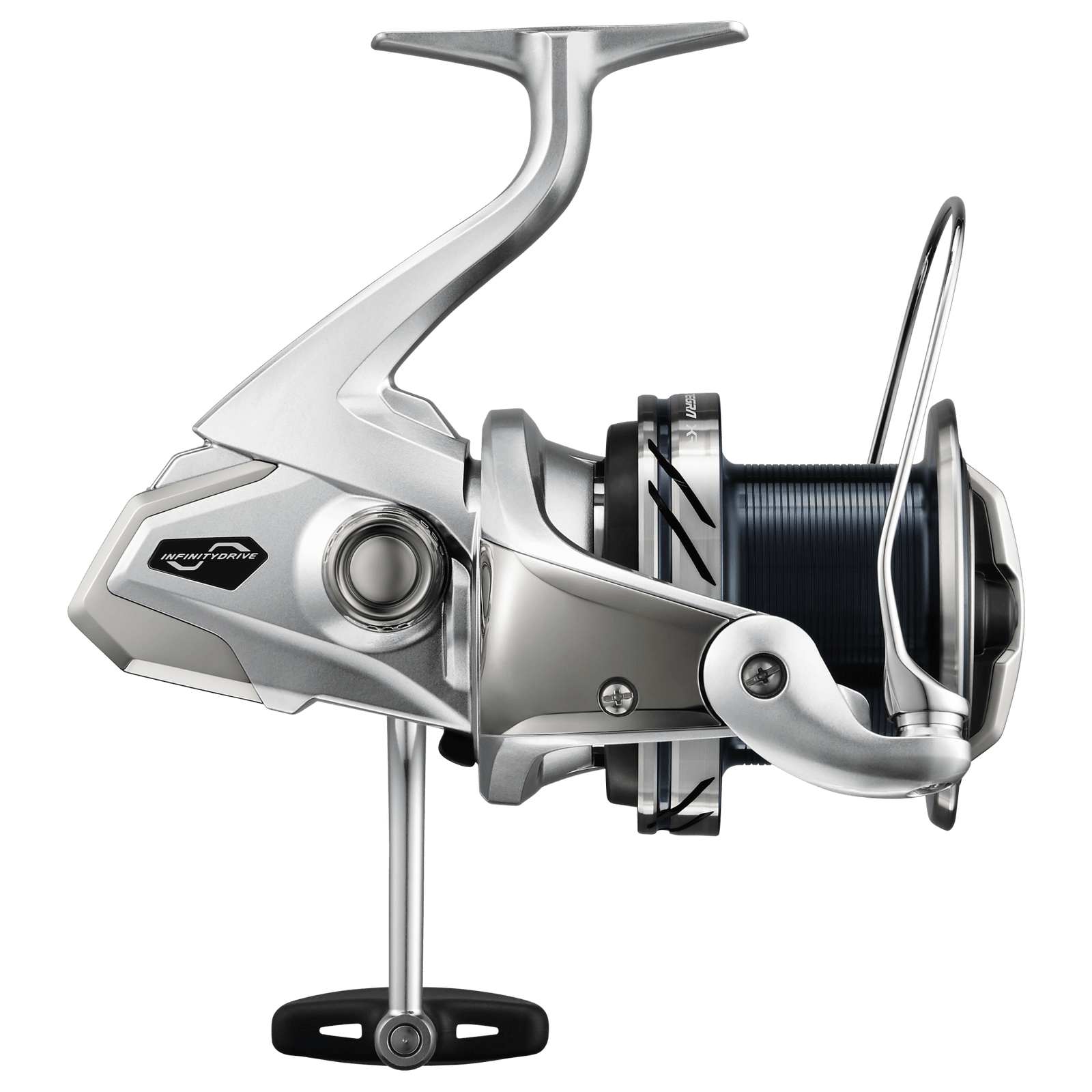

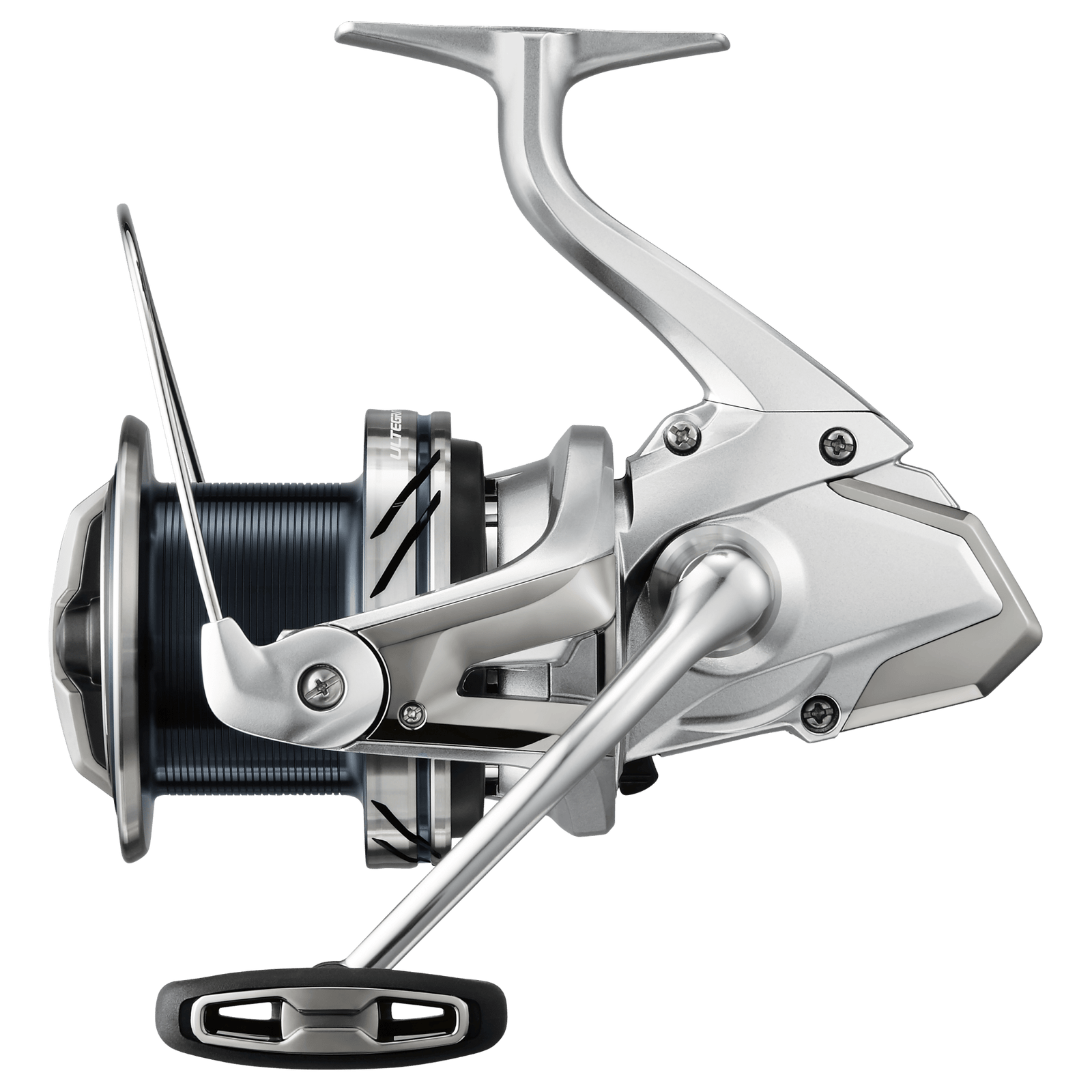

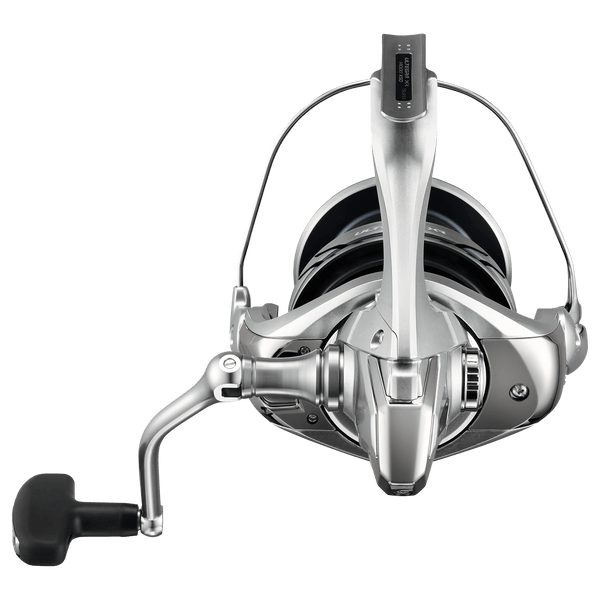

ULTEGRA XR
Product Details
- Infinity Drive
- X-Protect
- RigidCast
- SilentDriveCross Carbon Drag
Warning: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Choisissez votre produit
| Modèle | Prix | Boutons d'informations supplémentaires | Boutons Ajouter au panier |
|---|---|---|---|
ULTEGRA XR 14000 XSD SKU: ULTXR14000XSD
En stock
|
$579.99 |
ULTEGRA XR 14000 XSD
Envoyez-moi un e-mail dès que disponible
ULTEGRA XR 14000 XSD
SKU: ULTXR14000XSD
Spécifications
- Roulements
- 5/1
- Matériau de traînée
- Carbone croisé
- Type de glissement
- Traction avant
- Rapport de démultiplication
- 4.3
- Traînée maximale
- 44
- Capacité de ligne mono
- 12-600, 16-440, 20-330
- Récupérer par manivelle
- 41
Aperçu
Propulsion Line Management System
The most obvious component of the Propulsion Line Management System is the new Propulsion Spool Lip design. Through tens of thousands of casting tests and computer simulations, Shimano’s new spool lip design provides longer casting distances than a standard spool lip design while also preventing backlashes and wind knots from forming.
Cross Carbon Drag Spinning
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
G-Free Body
G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.
HAGANE Gear
With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the fruit of Shimano's inexhaustible pursuit for durability — the strength and power of forged metal continues to represent the fundamental concept of Shimano reels.
HAGANE
HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.
Hi-Speed Drag
HI-SPEED DRAG is the fastest drag function ever featured on a Shimano reel: A minimal turn on the drag knob will transition the drag settings from free-spool mode to fight mode.
Infinity Drive | Spinning Reels
The Infinity Drive structure is an advanced structure that creates exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.
One-Piece Bail
One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.
Parallel Body
Parallel Body is designed to improve dynamic line flow from the reel to the first guide. On many reels the spool is aligned slightly upwards towards the rod blank, but reels with Parallel Body have the spool located at exactly 90° to the blank. The result: less line slapping on the blank as it travels towards the first guide during the cast, ultimately increasing performance.
RigidCast
RigidCast technology is a design philosophy that balances the strength and lightness of the main shaft, rotor and body to withstand the impact of extreme casting force. RigidCast minimizes the wobbling movement of the spool and the deflection of the main shaft and body during the initial moments of the cast. This design results in better line release timing while reducing the friction on the line leaving the spool to increase casting distance and accuracy.
S A-RB Spinning
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
SilentDrive
SilentDrive technology benefits from a total redesign of all functional parts focused on the drive gear, worm shaft and other parts. The goal: remove unnecessary noise and vibration. In doing so, the overall tolerances are improved to a micron level, ultimately creating an overall quieter and smoother reel operation.
Super Slow Oscillation 5
Slower spool oscillation reduces the speed the line travels up and down the spool on the cast. This results in less friction as the line leaves the spool, improving casting distance and accuracy. Shimano’s Standard Oscillation — up to 20 wraps per cycle — outperforms the industry standard. Shimano’s Slow Oscillation tops that with up to 40 wraps per cycle and exceeds almost any other reel on the market. Shimano now offers two Super Slow Oscillation systems: Super Slow 5 (55 wraps) and Super Slow 10 (105 wraps).
X PROTECT
For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section.
X-Ship Spinning
X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
